Many companies already use TM1 as a powerful platform for planning, analysis, and reporting—but the quality of these processes depends entirely on the underlying data. In our projects, we often find that while the planning models are well-designed, data integration is neglected. The result: slow load times, inconsistent reports, or manual rework.

In this post, we’ll show you how to approach data integration in TM1 systematically, which data sources integrate well, and what you should keep in mind to ensure that your model not only works technically but also delivers compelling results.

Note: For historical reasons, the term “TM1” is still often used interchangeably with “IBM Planning Analytics,” but today it officially refers only to the database engine. 

Data integration in TM1 – what exactly does that involve?

In TM1, we refer to data integration as the process of loading data from external systems into cubes — whether on a one-time or recurring basis, automatically or manually. This involves not only importing raw data into the system, but also, and more importantly, structuring it in a meaningful way, cleaning it, and making it usable for analysis.

The entire process often begins outside of TM1 — for example, in an ERP system like SAP, in an SQL database, or in Excel spreadsheets. The goal is to prepare and transfer this external information in such a way that it can be seamlessly integrated into the TM1 cubes. There are various tools and strategies designed specifically for this purpose, which we will discuss below.

What data sources are suitable for TM1 — and how are they connected?

TM1 is very flexible when it comes to data sources. You can connect to traditional systems like SAP or Microsoft Dynamics as well as modern cloud applications or APIs. Commonly used sources include:

• ERP systems such as SAP, Oracle, or Dynamics
• CRM systems such as Salesforce or HubSpot
• SQL databases (e.g., SQL Server, PostgreSQL, Oracle DB)
• Flat files in the form of CSV or Excel files
• Cloud services such as Azure Blob Storage or Amazon S3
• REST APIs from third-party systems

These sources are typically connected via so-called TurboIntegrator processes. These are script-driven loading processes within TM1 that allow you to control data processing. For databases, the connection is established via ODBC drivers; for flat files, directly from the file system or a network drive; and for APIs, often via REST calls in combination with Python.

If you need to integrate a large number of sources with different formats and requirements, it may be worth using middleware such as Talend, IBM DataStage, or Informatica. These tools handle the preprocessing and then forward the structured data to TM1.

What should be considered when it comes to modeling and data structure?

Before you begin the technical integration, you should take the time to model your data. There’s little point in simply loading data into TM1 “any old way” — what matters is that it fits your model. So ask yourself: What dimensions do you need? How should the data be aggregated? Which metrics do you want to analyze?

A common mistake is to adopt data structures from source systems one-to-one without questioning them. Yet TM1 often offers the ability to model data in a more targeted and useful way, for example by restructuring dimensions or performing targeted summarization at relevant levels.

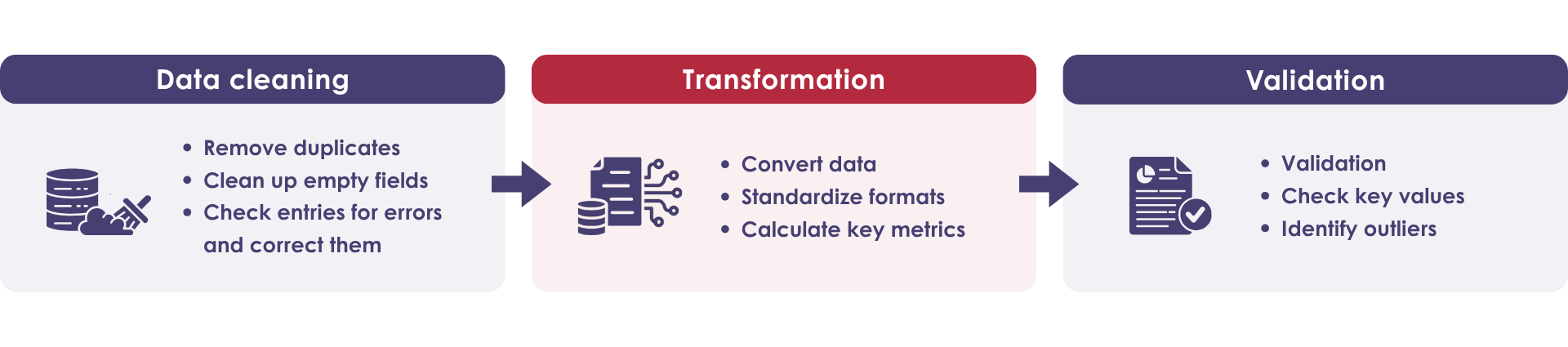

Data cleaning, transformation, and validation – more than just a chore

When you load data from different sources, you’re bound to encounter inconsistencies. Different formats, empty fields, duplicates, or incorrect entries are not the exception — they’re the rule. That’s why every data integration process should include quality assurance.

This can be done directly within a TI process or upstream using an ETL tool. It’s important to note: You should never load “unchecked” data into the production system. Ideally, you should incorporate validation logic that reacts to issues such as incorrect currency formats, missing keys, or unusual outliers. A daily load log with plain-text messages also provides you and the operations team with significant assistance during maintenance.

Real-world example: Loading data from an SQL source with validation

Let’s say you want to load sales data from an SQL database into TM1. You connect to the source via ODBC, drag the required fields (such as Product, Region, Revenue), convert the date format, check for null values, and write the data to your Sales Cube.

A simple but effective TI process could include the following steps:

1. Establish a connection
2. Define an SQL query
3. Skip empty or invalid fields
4. Document discrepancies in the log
5. Write data
6. Send the import results via email

Even though this may sound simple from a technical standpoint, it’s precisely this automation that makes all the difference in everyday life. Load times are consistent, sources of error are reduced, and you can focus on the content — not on fixing mistakes.

Key factors for successful and stable data integration

Based on our experience, there are a few basic principles you should keep in mind when integrating data:

First: Always work with a well-thought-out data loading strategy. Spontaneous, ad-hoc solutions may help in the short term, but they quickly lead to uncontrolled growth and poor maintainability.

Second: Document your IT processes — not just for the technical team, but also for the business department. This way, everyone knows where the data comes from, how it is processed, and how up-to-date it is.

Third: Schedule regular quality assurance checks. Whether automated tests, random evaluations, or visual plausibility checks — they help you detect errors early on.

And last but not least: Think in terms of processes, not sources. It’s not just about importing a CSV file, but about creating a stable workflow — from data generation to analysis in TM1.

Bottom line: Those who integrate effectively come out on top

Even the best planning in TM1 is of little use if the data foundation is flawed. Clean, well-structured data integration isn’t a luxury — it’s the cornerstone of everything built upon it. By investing early in a robust data model, clear processes, and effective tools, you’ll save yourself a lot of effort in the long run — and gain meaningful results you can rely on.
